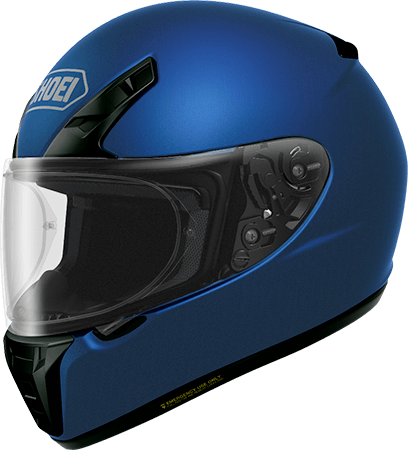

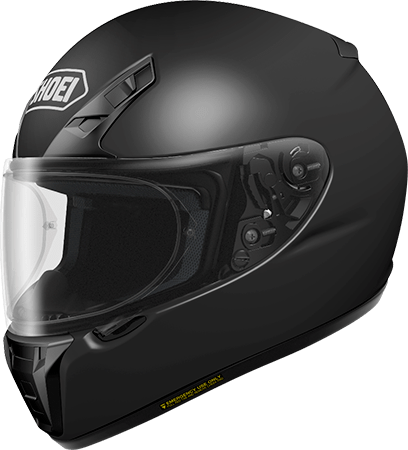

RYD

Whatever the riding scene may be, the next-generation standard rides on

A design that evokes a unique mood, featuring black parts that stand out.
While being a standard model, the always attractive presence of the RYD proudly features SHOEI's technology and know-how through and through, making a pleasurable ride a reality.
Anywhere, with any bike. Ride together with the RYD in the city or on long touring.

ALL COLLECTIONS

COLOR：: WHITE
SIZE：: XS/S/M/L/XL/XXLAbout Size

About Size

Please measure your circumference in your longest portions and select your size roughly.
However, different from hat, a size of helmet cannot be identified by circumference alone. And also, you may feel different when you wear several models of the same manufacturer in the same size.
Please wear your required model in your dealer before purchase.

Philippines(All products excl. X-Fifteen)
Malaysia(All products)
Thailand(All products)
Other Areas(X-Fourteen)

Sizing Guidelines
Helmet Size	XXS	XS	S	M	L	XL	XXL
CM	-	53～54cm	55～56cm	57～58cm	59～60cm	61～62cm	63～64cm

Philippines(X-Fifteen)
Other Areas(All products excl. X-Fourteen)

Sizing Guidelines
Helmet Size	XXS	XS	S	M	L	XL	XXL
CM	51cm	53cm	55cm	57cm	59cm	61cm	63cm

Main Characteristics

Form

A precisely calculated, attractive design

- The flowing lines with edges in The sharp form around The jawbone area give an aggressive impression for a design with a feeling of strength.
- Comparing this helmet with our previous model, we were able to create a more compact shell, and we took measures such as coloring the ventilation components black, in the pursuit of a visually compact design as well.

Ventilation system

Wind drawn into the helmet even when riding on hot days, for a comfortable ride

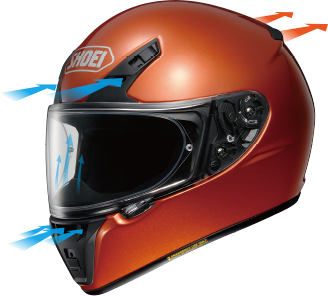

- Ventilation is one of the key points of the RYD design. Wind is drawn in from two intake ports on the front of the helmet and comes out from two outlets in the back, letting out the hot air inside the helmet.
- The lower air intake at the base of the mouth lets air drawn in flow inside the shield, acting as a defroster to eliminate shield fogging.

Shield System

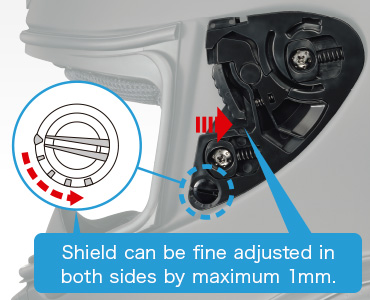

The shield base can be slid back into four positions by the dial.

Shield that makes simple operation with a clear field of vision through optical design a reality

- By changing the curvature on certain components through our optical design, this helmet features the CWR-1 shield, which makes clear line of sight with a minimum of curvature a reality. Blocks 99% of incoming ultraviolet light.
- The ribs equipped on the top and bottom edges of the shield eliminate bending when riding due to wind pressure and twisting when opening and closing the shield, allowing the shield to open and close smoothly.
- QR-E shield base allows the shield to be easily removed and fixed. The dial on the base can be used for fine adjustment of the shield position.
- The window beadings which seal to the shield are separated to upper and side. This offers more flexibility and improves the seal on the shield, minimizing wind noise.

PINLOCK® EVO lens

A PINLOCK® EVO lens that protects against shield fogging is provided as standard

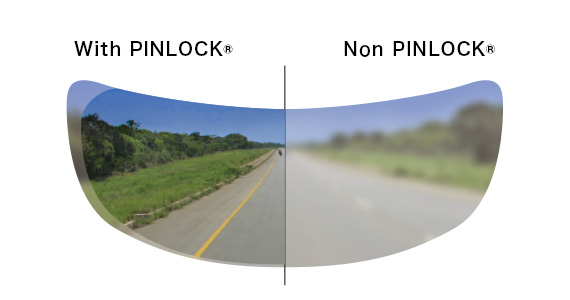

This ensures a clear field of vision by reducing fogging even in situations where shield fogging is likely to occur.

Vision of PINLOCK® EVO lens for CWR-1 PINLOCK®
Anti-fog sheet covers large area of a shield.
*The photo is illustrative purpose only.

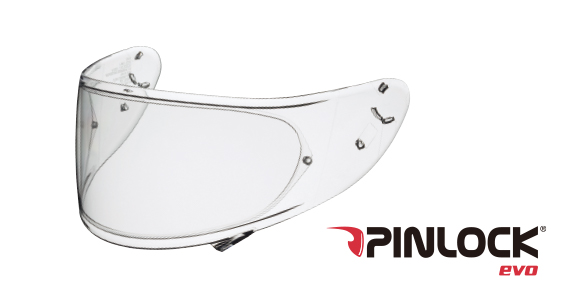

CWR-1 PINLOCK® + PINLOCK® EVO lens

Interior

Interior stays clean with full-removable pads
Soft touch and firm grip for a comfortable ride

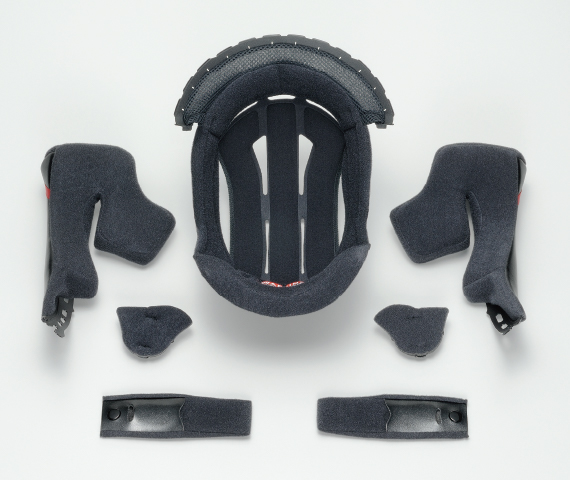

- The center pad, cheek pad, ear pad and chinstrap cover are all removable and can be cleaned.
- The interior surface is made of napped fabric. With its soft touch, this material rubs gently against your skin when you take off and put on your helmet.
- Three-dimensional urethane pads allow the entire interior to firmly grip the rider’s head in place, offering a comfortable fit.
- Even softer urethane is used for the parts inside the helmet that come into contact with the temples of your eyeglasses. This reduces the pressure on your temples, making it easier to wear glasses.

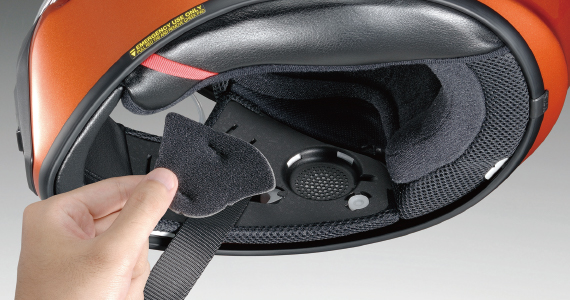

The ear space features detachable ear pads, letting you adjust the space around your ears. The ear space has been punch-pressed so that the sound inside the helmet does not have an effect when removing the ear pads.

E.Q.R.S.

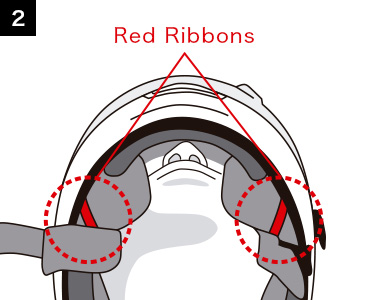

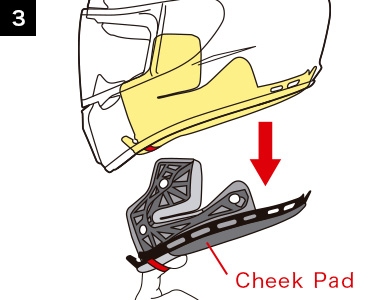

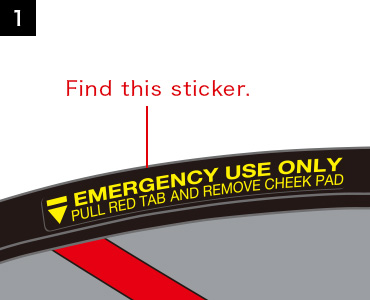

In the event that the rider needs medical assistance, this system allows another person to quickly provide medical help. Although prompt action is required when offering medical assistance to the rider, the rider’s helmet must be removed with great care. The E.Q.R.S. provides a special ribbon on the cheek pads that can be pulled during a medical emergency to easily detach the cheek pads from the helmet. By pulling off the cheek pad that holds the rider’s cheek in place, the helmet can be removed from the rider’s head with ease.

*When removing cheek pads for a usual maintenance, do not use E.Q.R.S. tabs.
